    MapTiler SDK Kotlin

    The MapTiler SDK Kotlin is a native SDK written in Kotlin, designed to work with the well-established MapTiler Cloud service, which provides all the data required to fuel a complete mobile mapping experience: vector tiles, GeoJSON, map interaction, custom styles, data visualization and more.

    📦 Installation

    MapTiler Kotlin SDK is a Kotlin library and can be added as a dependency in your Gradle file (Maven Central):

    • Make sure you have mavenCentral() added to your repositores inside your build.gradle
    • Add the library as dependency in your module build.gradle file.

dependencies {
  implementation("com.maptiler:maptiler-sdk-kotlin:1.3.0")
}

    Or, use Version Catalog instead, add following to the libs.versions.toml:


maptilerSdkKotlin = "1.3.0"

maptiler-sdk-kotlin = { module = "com.maptiler:maptiler-sdk-kotlin", version.ref = "maptilerSdkKotlin" }

    Then add following implementation in your build.gradle:


implementation(libs.maptiler.sdk.kotlin)

    For latest version visit https://central.sonatype.com/artifact/com.maptiler/maptiler-sdk-kotlin.

    🚀 Basic Usage

    Make sure to set your MapTiler Cloud API key first:


MTConfig.apiKey = "YOUR_API_KEY"

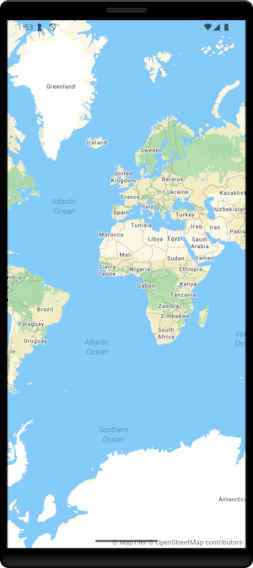

    Jetpack Compose

    Instantiate controller (with or without delegate) and the map view:


import com.maptiler.maptilersdk.map.MTMapOptions
import com.maptiler.maptilersdk.map.MTMapView
import com.maptiler.maptilersdk.map.MTMapViewController
import com.maptiler.maptilersdk.map.style.MTMapReferenceStyle

val controller = MTMapViewController(context)

MTMapView(
            MTMapReferenceStyle.STREETS,
            MTMapOptions(),
            controller,
            modifier =
                Modifier
                    .fillMaxSize(),
        )

    XML

    Add MTMapViewClassic to your layout XML:


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >
    <com.maptiler.maptilersdk.map.MTMapViewClassic
        android:id="@+id/classicMapView"
        android:layout_height="match_parent"
        android:layout_width="match_parent" />
</LinearLayout>

    Instantiate the MTMapViewClassic:


 import com.maptiler.maptilersdk.map.MTMapOptions
 import com.maptiler.maptilersdk.map.MTMapViewClassic
 import com.maptiler.maptilersdk.map.MTMapViewController
 import com.maptiler.maptilersdk.map.style.MTMapReferenceStyle

private lateinit var mapView: MTMapViewClassic

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        MTConfig.apiKey = "YOUR_API_KEY"
        val controller = MTMapViewController(baseContext)
        enableEdgeToEdge()
        setContentView(R.layout.main_activity_layout)

        mapView = findViewById(R.id.classicMapView)
        mapView.initialize(MTMapReferenceStyle.SATELLITE, MTMapOptions(), controller)
    }

    For a detailed functionality overview, refer to the API reference documentation.

    📘 API Reference

    For detailed guides, API reference, and advanced examples, visit our comprehensive documentation:

    API documentation

    Sources and Layers

    Sources and layers can be added to the map view style object as soon as the map is initialized. Setting the style after adding layers resets them to default, so make sure the style has finished loading first.


val sourceURL = URL("https://api.maptiler.com/tiles/v3-openmaptiles/tiles.json?key=$YOUR_API_KEY")
val source = MTVectorTileSource("openmapsource", sourceURL)
controller.style?.addSource(source)


try {
    val layer = MTFillLayer("fillLayer", "openmapsource")
    layer.color = Color.Blue.toArgb()
    layer.outlineColor = Color.Cyan.toArgb()
    layer.sourceLayer = "aeroway"
    controller.style?.addLayer(layer)
} catch (error: MTStyleError) {
    Log.e("MTStyleError", "Layer already exists.")
}

    Markers and Popups


val lngLat = LngLat(43.2352, 19.4567)
val marker = MTMarker(lngLat, Color.Blue.toArgb())
controller.style?.addMarker(marker)


val lngLat = LngLat(43.2352, 19.4567)
val popup = MTTextPopup(lngLat, "My Text")
controller.style?.addTextPopup(popup)

    Events

    Optionally wrap the map controller in a class to observe the map events and use the wrapper class controller for map manipulation.


class MapController(
    private val context: Context,
) : MTMapViewDelegate {
    val controller: MTMapViewController =
        MTMapViewController(context).apply {
            delegate = this@MapController
        }

    override fun onMapViewInitialized() {
        Log.i("Init", "Map View Initialized.")
    }

    override fun onEventTriggered(
        event: MTEvent,
        data: MTData?,
    ) {
        Log.i("Event", "Map View Event Triggered: $event.")
    }
}

    Custom Annotations

    Render your own UI as map annotations.

    Note: Custom annotations rely on camera events. They work out of the box with the default CAMERA_ONLY event level (provides ON_MOVE and ON_ZOOM). If you override eventLevel, ensure it is CAMERA_ONLY or ALL.

    Compose — overlay on top of MTMapView


Box(Modifier.fillMaxSize()) {
    MTMapView(MTMapReferenceStyle.STREETS, MTMapOptions(), controller, Modifier.fillMaxSize())

    MTCustomAnnotationView(
        controller = controller,
        coordinates = LngLat(16.6, 49.2),
        modifier = Modifier,
    ) {
        // Your composable content here (e.g., a Card or Icon)
    }
}

    XML (Classic) — add a view above MTMapViewClassic


// Create with desired size in pixels and initial coordinates
val customView = MTCustomAnnotationViewClassic(
    context = this,
    widthPx = 120,
    heightPx = 48,
    initialCoordinates = LngLat(16.6, 49.2),
)

// Attach above the WebView and start updates
customView.addTo(mapView /* MTMapViewClassic */, controller)

// Update position later
customView.setCoordinates(LngLat(16.7, 49.25), controller)

// Remove when no longer needed
customView.remove()

    ⚙️ Performance, Events, and Throttling

    To balance responsiveness and performance, the event level and throttling are configurable via MTMapOptions:

    • Event levels:
      • ESSENTIAL: Lifecycle and taps only (ready, load, moveend, resize). No per-frame camera updates.
      • CAMERA_ONLY (default): Essentials plus move and zoom camera events. Ideal for custom annotations.
      • ALL: Everything, including high-frequency touch/render events. Use with care on low-end devices.
      • OFF: Minimal wiring (internal lifecycle only).
    • Throttle: highFrequencyEventThrottleMs applies to CAMERA_ONLY and ALL to limit update rate during gestures. Default is 150 ms. Set to 0–32 for smoother overlays, or increase for balanced performance.

    Examples:


// Smooth camera tracking for overlays
val options = MTMapOptions(
    eventLevel = MTEventLevel.CAMERA_ONLY,
    highFrequencyEventThrottleMs = 16,
)

// Leanest pipeline with lifecycle only
val lean = MTMapOptions(eventLevel = MTEventLevel.ESSENTIAL)

    You can also apply preset helpers:


// Start from your options and apply lean performance defaults (keeps essentials; camera events can be opted-in)
val opts = MTMapOptions(center = LngLat(16.6, 49.2), zoom = 10.0)
val leanOpts = opts.withLeanPerformanceDefaults()

// Or go for high fidelity performance settings
val hiFi = MTMapOptions().withHighFidelityDefaults()

    Space

    The space option customizes the globe’s background, simulating deep space or skybox effects.

    • Prerequisite: use globe projection. Set projection = MTProjectionType.GLOBE in MTMapOptions.

    Usage — solid color background


val controller = MTMapViewController(context)

val options = MTMapOptions(
    projection = MTProjectionType.GLOBE,
    space = MTSpaceOption.Config(
        MTSpace(
            color = Color(0xFF111122).toArgb(),
        ),
    ),
)

MTMapView(
    MTMapReferenceStyle.STREETS,
    options,
    controller,
    modifier = Modifier.fillMaxSize(),
)

    Presets — predefined cubemaps

    • SPACE: Dark blue background; stars stay white. Space color changes background color.
    • STARS (default): Black background; space color changes stars color.
    • MILKYWAY: Black half‑transparent background with standard milky way and stars; space color tints stars and milky way.
    • MILKYWAY_SUBTLE: Subtle milky way, fewer stars; space color tints stars and milky way.
    • MILKYWAY_BRIGHT: Bright milky way, more stars; space color tints stars and milky way.
    • MILKYWAY_COLORED: Full image with natural colors; space color has no effect.

val options = MTMapOptions(
    projection = MTProjectionType.GLOBE,
    space = MTSpaceOption.Config(MTSpace(preset = MTSpacePreset.SPACE)),
)

    Custom cubemap — provide all faces


val faces = MTSpaceFaces(
    pX = "https://example.com/space/px.png",
    nX = "https://example.com/space/nx.png",
    pY = "https://example.com/space/py.png",
    nY = "https://example.com/space/ny.png",
    pZ = "https://example.com/space/pz.png",
    nZ = "https://example.com/space/nz.png",
)

val options = MTMapOptions(
    projection = MTProjectionType.GLOBE,
    space = MTSpaceOption.Config(MTSpace(faces = faces)),
)

    Cubemap by path — files named px, nx, py, ny, pz, nz with the given format


val path = MTSpacePath(
    baseUrl = "https://example.com/spacebox/transparent",
    format = "png", // defaults to PNG if omitted
)

val options = MTMapOptions(
    projection = MTProjectionType.GLOBE,
    space = MTSpaceOption.Config(MTSpace(path = path)),
)

    Dynamic updates — change space at runtime


// Call after the map is initialized (e.g., in MTMapViewDelegate.onMapViewInitialized)
controller.style?.setSpace(
    MTSpace(
        color = Color.Red.toArgb(),
        path = MTSpacePath(baseUrl = "https://example.com/spacebox/transparent"),
    ),
)

    Note: When calling setSpace, any field not explicitly provided (e.g., color, faces, path, or preset) keeps its previous value.

    Halo

    The halo option adds a gradient-based atmospheric glow around the globe, simulating the visual effect of Earth’s atmosphere when viewed from space.

    • Prerequisite: use globe projection. Set projection = MTProjectionType.GLOBE in MTMapOptions.

    Enable during map initialization


val options = MTMapOptions(
    projection = MTProjectionType.GLOBE,
    halo = MTHaloOption.Enabled,
)

    Custom gradient — scale and stops


val options = MTMapOptions(center = null, zoom = null, projection = MTProjectionType.GLOBE).apply {
    setHalo(
        MTHalo(
            scale = 1.5, // Controls the halo size
            stops = listOf(
                MTHaloStop(position = 0.2, color = "#00000000"),
                MTHaloStop(position = 0.2, color = "#FF0000"),
                MTHaloStop(position = 0.4, color = "#FF0000"),
                MTHaloStop(position = 0.4, color = "#00000000"),
                MTHaloStop(position = 0.6, color = "#00000000"),
                MTHaloStop(position = 0.6, color = "#FF0000"),
                MTHaloStop(position = 0.8, color = "#FF0000"),
                MTHaloStop(position = 0.8, color = "#00000000"),
                MTHaloStop(position = 1.0, color = "#00000000"),
            ),
        ),
    )
}

    Dynamic updates — change halo at runtime


// Call after the map is initialized (e.g., in MTMapViewDelegate.onMapViewInitialized)
controller.style?.setHalo(
    MTHalo(
        scale = 2.0,
        stops = listOf(
            MTHaloStop(position = 0.0, color = "#87CEFA"),
            MTHaloStop(position = 0.5, color = "#0000FABF"),
            MTHaloStop(position = 0.75, color = "#FF000000"),
        ),
    ),
)

    Disable animations — halo and space


// Call after initialization
controller.style?.disableHaloAnimations()
controller.style?.disableSpaceAnimations()
