How To Migrate/Switch From MapLibre Native Android To MapTiler SDK Kotlin

This tutorial provides guidance on transitioning from MapLibre Native Android to the MapTiler Kotlin SDK. If you currently use MapLibre’s Android SDK, switching to MapTiler Kotlin is straightforward.

In most cases, you only need to replace the MapLibre dependency with the MapTiler SDK Kotlin, set the API key once in MTConfig, and swap MapLibre-specific classes/usages for the typed MapTiler SDK Kotlin APIs (MTMapView, MTMapOptions, MTMapReferenceStyle, MTMapViewController, etc.). You’ll also replace style URLs containing ?key=… with strong typed styles and language/terrain options.

Next, see the main changes to migrate your app from MapLibre to MapTiler Kotlin.

Installation

Replace the Gradle dependency to use the MapTiler Kotlin SDK.

MapLibre Native Android (Gradle)

dependencies {
  implementation("org.maplibre.gl:android-sdk:<version>")
}

MapTiler SDK Kotlin (Gradle)

dependencies {
  implementation("com.maptiler:maptiler-sdk-kotlin:{{site.versions.maptiler-android-kotlin}}")
}

Replace MapLibre Classes With MapTiler SDK Types

Search your app and replace MapLibre classes and helpers with MapTiler Kotlin equivalents. Some examples below.

MapLibre Native Android

// Declare a variable for MapView
private lateinit var mapView: MapView

// Declare a variable for MapLibreMap
private lateinit var maplibreMap: MapLibreMap

mapView.getMapAsync { map ->
  maplibreMap = map

  maplibreMap.setStyle("https://api.maptiler.com/maps/{{site.map-styles.streets}}/style.json?key=$KEY")
}

MapTiler SDK Kotlin - Compose

MTConfig.apiKey = "YOUR_API_KEY"
val controller = MTMapViewController(context)
MTMapView(
  referenceStyle = MTMapReferenceStyle.STREETS,
  options = MTMapOptions(center = LngLat(8.5419, 47.3799), zoom = 10.68),
  controller = controller
)

MapTiler SDK Kotlin - XML

MTConfig.apiKey = "YOUR_API_KEY"
val controller = MTMapViewController(context)
findViewById<MTMapViewClassic>(R.id.classicMapView).initialize(
  referenceStyle = MTMapReferenceStyle.STREETS,
  options = MTMapOptions(center = LngLat(8.5419, 47.3799), zoom = 10.68),
  controller = controller
)

Migrate The Basemap Styles

Use MapTiler’s predefined styles without embedding ?key=… or hardcoding style versions.

MapLibre Native Android

val styleUrl = "https://api.maptiler.com/maps/{{site.map-styles.streets}}/style.json?key=$KEY" // versioned URL + key

MapTiler SDK Kotlin

// Always latest style; no URL or key in the string
val reference = MTMapReferenceStyle.STREETS
// Optional variant:
styleVariant = MTMapStyleVariant.DARK

Camera Animation

MapLibre Native Android

// Move camera
val cameraPosition =
  CameraPosition.Builder()
    .target(nextLatLng)
    .zoom(zoom)
    .tilt(30.0)
    .build()
maplibreMap.moveCamera(CameraUpdateFactory.newCameraPosition(cameraPosition))

// Animate camera
val cameraPosition =
  CameraPosition.Builder().target(nextLatLng).bearing(bearing).tilt(tilt).build()
maplibreMap.animateCamera(
  CameraUpdateFactory.newCameraPosition(cameraPosition),
  7500,
  callback
)

MapTiler SDK Kotlin

val controller = MTMapViewController(context)
val cameraOptions = MTCameraOptions(center, zoom, bearing, pitch)
controller.jumpTo(cameraOptions)
controller.easeTo(cameraOptions)
controller.flyTo(cameraOptions)

Add Sources and Layers

MapLibre Native Android

val source = GeoJsonSource("mySource", URI("https://example.com/example.geojson")

val lineLayer = LineLayer("myLayer", "source")
  .withProperties(
    PropertyFactory.lineColor(Color.RED),
    PropertyFactory.lineWidth(10f)
  )

style.addSource(source)
style.addLayer(lineLayer)

MapTiler SDK Kotlin

val source = MTGeoJSONSource(identifier = "mySource", url = URL("https://example.com/example.geojson"))
val lineLayer = MTLineLayer(identifier = "myLayer", sourceIdentifier = source.identifier)
lineLayer.sourceLayer = "contour"
lineLayer.color = Color.RED
lineLayer.width = 1.5
controller.style?.addSource(source)
controller.style?.addLayer(lineLayer)

Custom Annotations

While MapLibre Android uses annotations package to add map overlays, MapTiler SDK Kotlin uses MTCustomAnnotationView and MTCustomAnnotationViewClassic for Compose and XML respectively.

// Compose: Place MTCustomAnnotationView as a sibling composable above MTMapView
// inside a stacking container (e.g., Box)
MTCustomAnnotationView(
  controller = controller,
  coordinates = LngLat(14.42076, 50.08804),
  modifier = Modifier
) {
  // Your composable (e.g., Card/Text/Icon)
}
// XML: MTCustomAnnotationViewClassic is a container: add your own child Android Views
// into it to render custom UI.
val annotation = MTCustomAnnotationViewClassic(
  context = this,
  widthPx = 120, heightPx = 48,
  initialCoordinates = LngLat(14.42076, 50.08804)
)
// Inflate your custom layout into the container
LayoutInflater.from(this).inflate(R.layout.my_custom_layout, annotation, true)
annotation.addTo(mapView, controller)

For more info take a look at our custom annotations example.

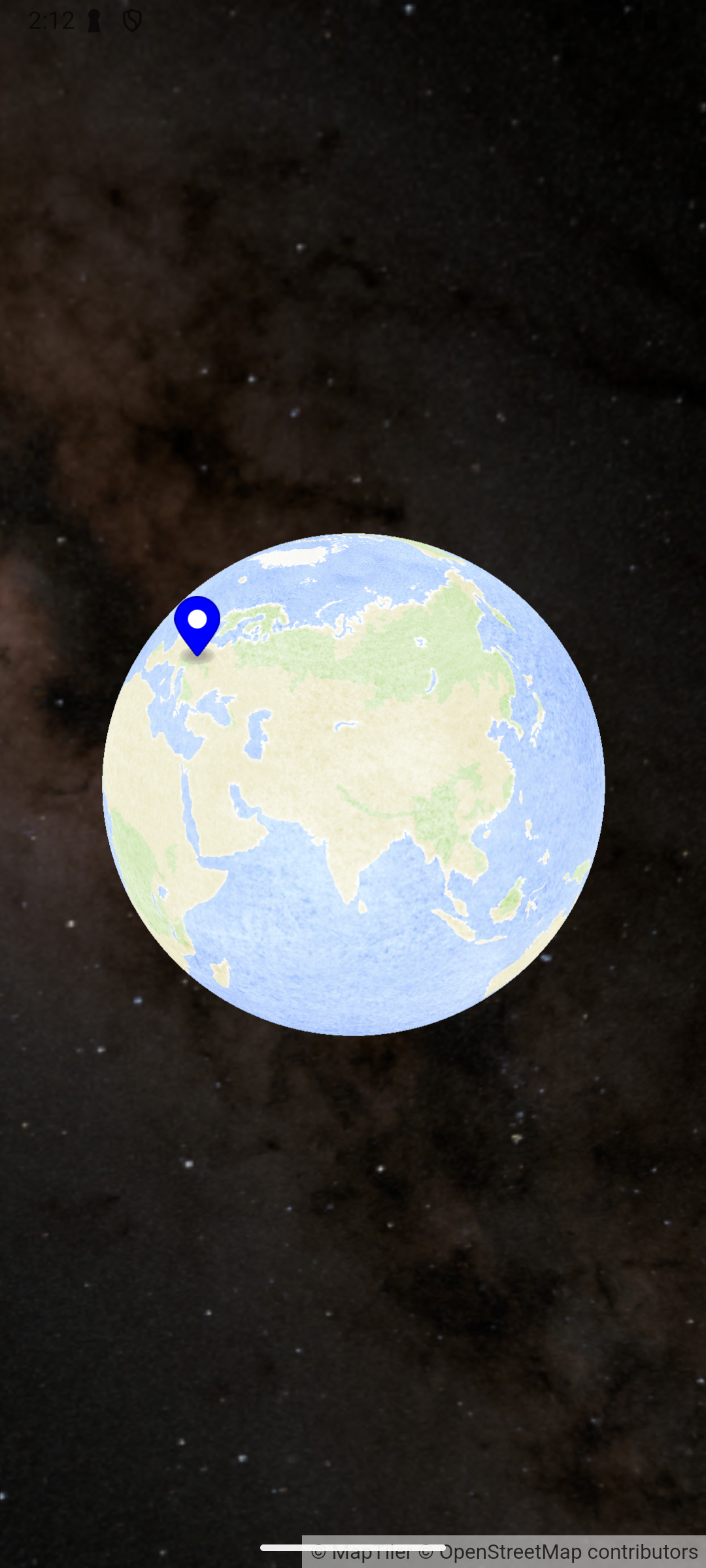

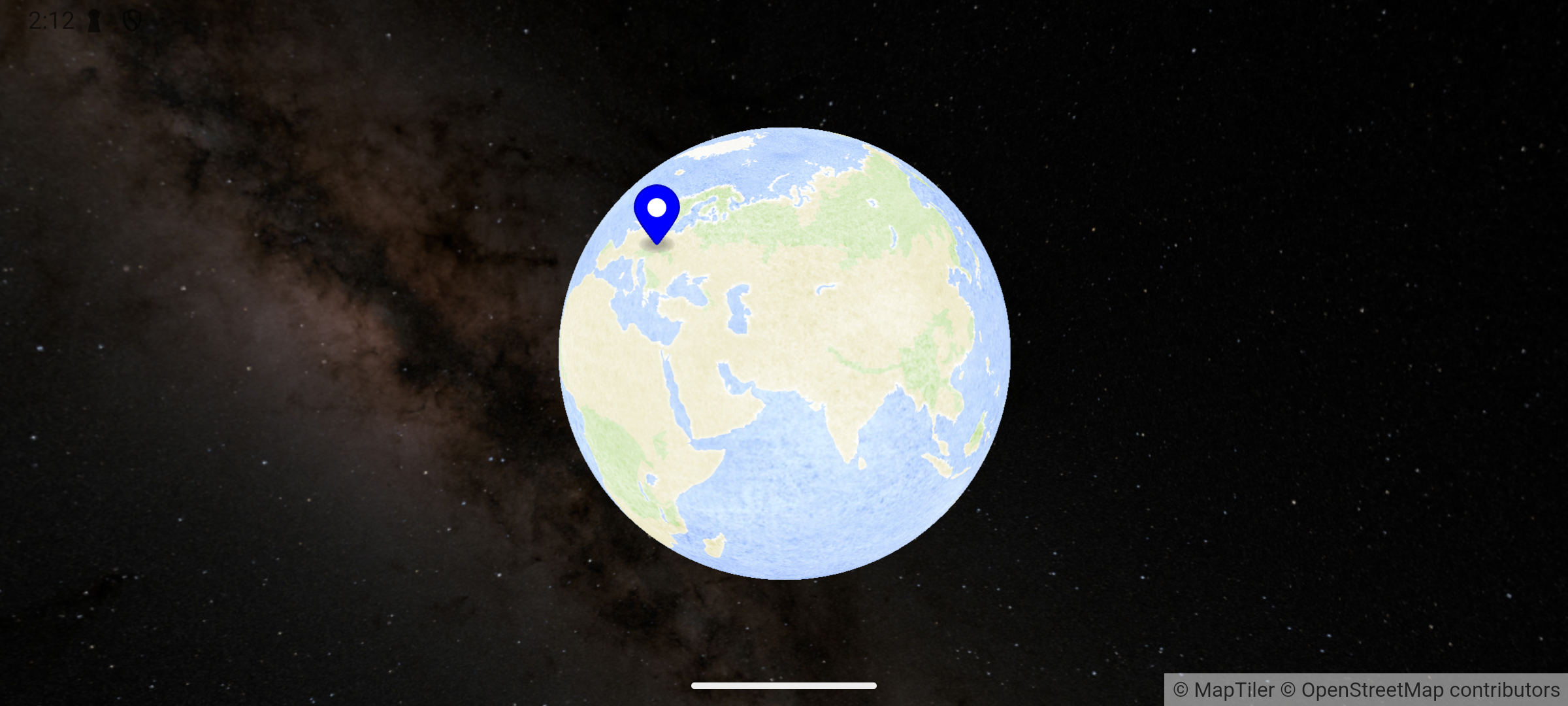

Markers, Globe and Space

MapTiler SDK Kotlin also gives you options to change map projection to Globe, add space background behind it and annotate your data with markers.

Compose

// Set once in your app (e.g., Application.onCreate)
MTConfig.apiKey = "YOUR_API_KEY"
val controller = MTMapViewController(context).apply {
  // Add marker only after the map is ready
  delegate = object : MTMapViewDelegate {
    override fun onMapViewInitialized() {
      // Map is initialized
    }
    override fun onEventTriggered(event: MTEvent, data: MTData?) {
      if (event == MTEvent.ON_READY) {
        val location = LngLat(14.42076, 50.08804)
        style?.addMarker(MTMarker(location))
      }
    }
  }
}
// Enable globe projection and add space background behind it
val options = MTMapOptions(
  projection = MTProjectionType.GLOBE,
  space = MTSpaceOption.Config(
    MTSpace(preset = MTSpacePreset.MILKYWAY_COLORED)
  )
)
MTMapView(
  referenceStyle = MTMapReferenceStyle.AQUARELLE,
  options = options,
  controller = controller,
  modifier = Modifier.fillMaxSize()
)

XML

// XML layout contains: <com.maptiler.maptilersdk.map.MTMapViewClassic android:id="@+id/classicMapView" ... />
MTConfig.apiKey = "YOUR_API_KEY"
val controller = MTMapViewController(this).apply {
  delegate = object : MTMapViewDelegate {
    override fun onMapViewInitialized() {
      // Map is initialized
    }
    override fun onEventTriggered(event: MTEvent, data: MTData?) {
      if (event == MTEvent.ON_READY) {
        style?.addMarker(MTMarker(LngLat(14.42076, 50.08804)))
      }
    }
  }
}
val options = MTMapOptions(
  projection = MTProjectionType.GLOBE,
  space = MTSpaceOption.Config(MTSpace(preset = MTSpacePreset.MILKYWAY_COLORED))
)
val classic = findViewById<MTMapViewClassic>(R.id.classicMapView)
classic.initialize(
  referenceStyle = MTMapReferenceStyle.AQUARELLE,
  options = options,
  controller = controller
)
