Polygon Helper - Swift SDK

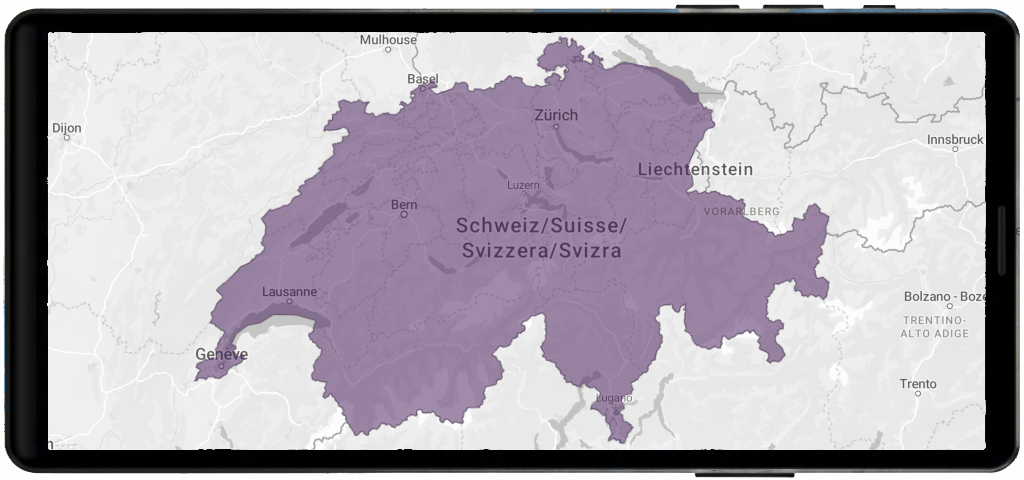

This example show how to render Polygon/Multipolygon features with styles options like fill, optional pattern, and outline.

The vector layer helpers take your data and styling options and create the right source + layers on the current map style with minimal code. Helpers normalize sensible defaults like zoom range, outlines, etc. so you can get results quickly.

Basic flow

This example show how to render Polygon/Multipolygon features with fill, optional pattern, and outline.

import MapTilerSDK

// Assume you have an MTMapView already on screen
let mapView: MTMapView = ...

Task { @MainActor in
    guard let style = mapView.style else { return }

    let helper = MTPolygonLayerHelper(style)

    let polygonOptions = MTPolygonLayerOptions(
        data: "...GeoJSON polygon(s)...", // URL or inline string
        fillColor: "#1e90ff",
        fillOpacity: 0.5,
        outline: true,
        outlineColor: "white",
        outlineWidth: 1.2,
        outlineOpacity: 0.9
    )

    await helper.addPolygon(polygonOptions)
}

Learn more

Check the MTPolygonLayerHelper reference to understand how to create and manage point layers.

Review MTPolygonLayerOptions to explore all available configuration options.
