JP GSI schema

The vector tile schema describes how the vector data is organized into different thematic layers and which attribute and values each layer contains. This is useful for writing a map style.

JP GSI is a tileset that contains vector tiles provided by the Geospatial Information Authority of Japan.

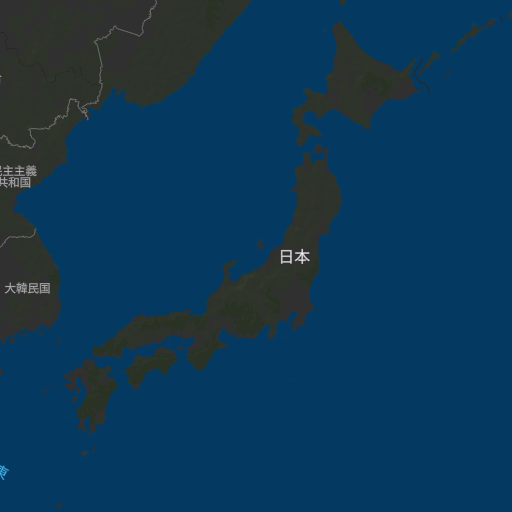

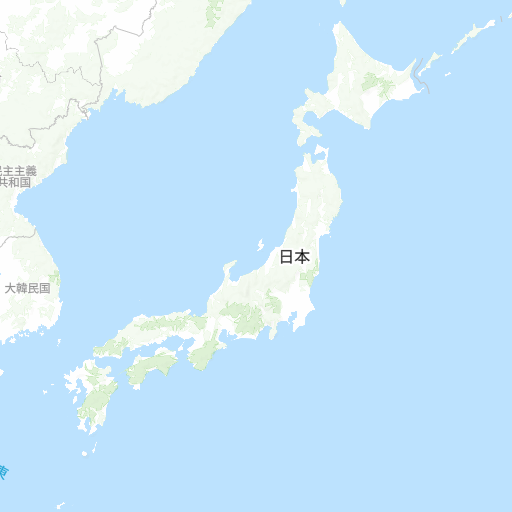

Explore the tileset in the interactive map viewer, check the date of the last update, use it as vector tiles, etc.

Inspect JP GSI schema

Definition of layers

The JP GSI tileset contains the following layers:

AdmArea #

Layer containing Administrative Area (AdmArea).

Block

AdmArea

Geometry

Polygon

Min zoom

14

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 1104 (Towns/Villages and Wards of Designated Cities)
  • 1103 (Counties/Cities and Wards of Tokyo)
  • 1188
  • 1199

AdmBdry #

Layer containing Administrative Boundary Line (AdmBdry).

Block

AdmBdry

Geometry

LineString

Min zoom

4

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 1221 (25000 Municipal Boundary)
  • 1212 (Regional Boundary)
  • 1211 (25000 Prefectural and Hokkaido Regional Bureau Boundary)

Anno #

Layer containing Annotation (Anno).

Block

Anno

Geometry

Point, LineString

Min zoom

4

Max zoom

17

Fields

vt_code

Type: number

Min value:

  • 110 (Municipality)

Max value:

  • 8105 (Radio Tower)

vt_text

Type: string

vt_arrng

Type: number

Values:

  • 1 (Horizontal Text)
  • 2 (Vertical Text)
  • 0
  • 3 (Horizontal Free Text)
  • 4 (Vertical Free Text)
  • -2147483648

vt_arrngagl

Type: number

Min value:

  • -356

Max value:

  • 375

vt_dsppos

Type: string

Values:

  • RC
  • CT
  • LC
  • CB
  • LT
  • RB
  • RT
  • CC
  • LB

vt_flag17

Type: number

Values:

  • 0 (Display Zoom Level 16)
  • 1 (Display Both Zoom Levels 16,17)
  • 2 (Display Zoom Level 17)

BldA #

Layer containing Building (BldA).

Block

BldA

Geometry

Polygon

Min zoom

14

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 3102 (Solid Building)
  • 3101 (Ordinary Building)
  • 3111 (Ordinary Roofed Structure without Walls)
  • 3112 (Solid Roofed Structure without Walls)
  • 3103 (High-rise Building)

vt_lvorder

Type: number

Values:

  • 0
  • 4
  • 1
  • 2
  • 3
  • 6
  • 20
  • 10

Cntr #

Layer containing Contour Line (Cntr).

Block

Cntr

Geometry

LineString

Min zoom

8

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 7351 (Contour Line Normal Part)
  • 7353 (Contour Line Depression Part)
  • 7352 (25000 Contour Line Numeric Value)

vt_alti

Type: number

Min value:

  • -150

Max value:

  • 3770

Cstline #

Layer containing Coastline (Cstline).

Block

Cstline

Geometry

LineString

Min zoom

4

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 5101 (Coastline Normal Part)
  • 5103 (Coastline Contacting Levee etc.)

Isbt #

Layer containing Depth Contour (Isbt).

Block

Isbt

Geometry

LineString

Min zoom

11

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 7371 (Depth Contour Normal Part (Lake/Pond))
  • 7372 (25000 Depth Contour Numeric Value (Lake/Pond))
  • 7373 (Depth Contour Cliff Part (Lake/Pond))

vt_depth

Type: number

Min value:

  • 0

Max value:

  • 420

PwrTrnsmL #

Layer containing Power Transmission Line (PwrTrnsmL).

Block

PwrTrnsmL

Geometry

LineString

Min zoom

14

Max zoom

16

Fields

vt_code

Type: number

Values:

  • 8202 (Power Transmission Line)

RailCL #

Layer containing Railway Centerline (RailCL).

Block

RailCL

Geometry

LineString

Min zoom

4

Max zoom

16

Fields

vt_code

Type: number

Values:

  • 8201 (Railway Centerline)

vt_railstate

Type: string

Values:

  • 通常部 (Normal Part)
  • トンネル (Tunnel)
  • トンネル (Tunnel)
  • 橋・高架 (Bridge/Elevated)
  • 雪覆い (Snow Shelter)
  • 地下 (Underground)
  • 運休中 (Suspended)

vt_rtcode

Type: string

Values:

  • 新幹線 (Shinkansen)
  • 主要鉄道 (Major Railway)
  • JR
  • JR以外 (Other than JR)
  • 索道 (Cableway)
  • 路面 (Tram)
  • 地下鉄 (Subway)
  • 特殊鉄道 (Special Railway)
  • 側線 (Sidetrack)

vt_sngldbl

Type: string

Values:

  • 複線以上 (Double Track or More)
  • 単線 (Single Track)
  • 側線 (Sidetrack)
  • 駅部分 (Station Part)
  • 非表示 (Hidden)

vt_lvorder

Type: number

Values:

  • 1
  • 2
  • 0
  • 3
  • 5
  • 4
  • 6

vt_flag17

Type: number

Values:

  • 0 (Display Zoom Level 16)
  • 1 (Display Both Zoom Levels 16,17)

RailTrCL #

Layer containing Track Centerline (RailTrCL).

Block

RailTrCL

Geometry

LineString

Min zoom

14

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 2821 (Cableway Normal Part)
  • 2811 (Special Railway Normal Part)
  • 2812 (Special Railway Shielded)
  • 2813 (Special Railway Bridge/Elevated)
  • 2814 (Special Railway Tunnel)
  • 2801 (Ordinary Railway Normal Part)
  • 2802 (Ordinary Railway Shielded)
  • 2804 (Ordinary Railway Tunnel)
  • 2803 (Ordinary Railway Bridge/Elevated)
  • 2841 (Sidetrack Normal Part)
  • 2843 (Sidetrack Bridge/Elevated)
  • 2842 (Sidetrack Shielded)
  • 2822 (Cableway Shielded)
  • 2831 (Tram Normal Part)
  • 2832 (Tram Shielded)
  • 2833 (Tram Bridge/Elevated)
  • 2834 (Tram Tunnel)
  • 2806 (Ordinary Railway Suspended)
  • 2824 (Cableway Tunnel)
  • 2823
  • 2836 (Tram Suspended)
  • 2844 (Sidetrack Tunnel)

vt_drworder

Type: number

Values:

  • 0
  • 1
  • 2

RdCL #

Layer containing Road Centerline (RdCL).

Block

RdCL

Geometry

LineString

Min zoom

4

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 2701 (Road Centerline Normal Part)
  • 2704 (Road Centerline Tunnel)
  • 2703 (Road Centerline Bridge/Elevated)
  • 2711 (2-Lane Road Centerline Normal Part)
  • 2721 (2-Lane Road Centerline Normal Part)
  • 2713 (2-Lane Road Centerline Bridge/Elevated)
  • 2731 (Footpath Normal Part)
  • 2723 (2-Lane Road Centerline Bridge/Elevated)
  • 2714 (2-Lane Road Centerline Tunnel)
  • 2724 (2-Lane Road Centerline Tunnel)
  • 2702 (Road Centerline Snow Shelter)
  • 2712 (2-Lane Road Centerline Snow Shelter)
  • 2722 (2-Lane Road Centerline Snow Shelter)
  • 2732 (Footpath Snow Shelter)

vt_rdctg

Type: string

Values:

  • 高速自動車国道等 (National Expressway, etc.)
  • 主要道路 (Major Road)
  • 国道 (National Highway)
  • 不明 (Unknown)
  • 都道府県道 (Prefectural Road)
  • 市区町村道等 (Municipal Road, etc.)
  • その他 (Other)

vt_drworder

Type: number

Values:

  • 4
  • 2
  • 3
  • 44
  • 49
  • 48
  • 40
  • 24
  • 47
  • 29
  • 28
  • 26
  • 46
  • 27
  • 43
  • 23
  • 54
  • 45
  • 55
  • 41
  • 25
  • 51
  • 21
  • 42
  • 50
  • 53
  • 22
  • 52
  • 20
  • 34
  • 35
  • 33
  • 31
  • 32

vt_tollsect

Type: string

Values:

  • 不明 (Unknown)
  • 無料 (Free)
  • 有料 (Toll)
  • 暫定無料 (Provisionally Free)

vt_motorway

Type: number

Values:

  • 9 (Unknown)
  • 0 (Other than Expressway)
  • 1 (Expressway)

vt_lvorder

Type: number

Values:

  • 0
  • 1
  • 2
  • 3
  • 4

vt_rnkwidth

Type: string

Values:

  • 3m未満 (Under 3m)
  • 5.5m-13m未満 (5.5m to under 13m)
  • 3m-5.5m未満 (3m to under 5.5m)
  • 13m-19.5m未満 (13m to under 19.5m)
  • 19.5m以上 (19.5m or more)
  • 不明 (Unknown)

vt_width

Type: number

Min value:

  • 131

Max value:

  • 7992

vt_flag17

Type: number

Values:

  • 0 (Display Zoom Level 16)
  • 1 (Display Both Zoom Levels 16,17)

RdCompt #

Layer containing Road Configuration Line (RdCompt).

Block

RdCompt

Geometry

LineString

Min zoom

17

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 2401 (Road in Tunnel)
  • 2411 (Median Normal Part)

RdEdg #

Layer containing Road Edge (RdEdg).

Block

RdEdg

Geometry

LineString

Min zoom

17

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 2201 (Road Edge Normal Part)
  • 2221 (Road Edge Normal Part)
  • 2223 (Road Edge Bridge/Elevated)
  • 2203 (Road Edge Bridge/Elevated)
  • 2204 (Road Edge Tunnel Entrance Line)
  • 2224 (Road Edge Tunnel Entrance Line)

vt_drworder

Type: number

Values:

  • 0
  • 1
  • 2
  • 3
  • 4
  • 5

RvrCL #

Layer containing River Centerline (RvrCL).

Block

RvrCL

Geometry

LineString

Min zoom

8

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 5301 (Single River Normal Part)
  • 5322 (Artificial Waterway Underground)
  • 5302 (Single River Dry Riverbed)
  • 5321 (Artificial Waterway Space)
  • 5331 (Irrigation Canal)

SpcfArea #

Layer containing Specific Area Boundary (SpcfArea).

Block

SpcfArea

Geometry

LineString

Min zoom

11

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 6101 (Specific Area Boundary)

StrctArea #

Layer containing Structure Area (StrctArea).

Block

StrctArea

Geometry

Polygon

Min zoom

14

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 4302 (Tank)
  • 4301 (Huge Structure)

StrctLine #

Layer containing Structure Line (StrctLine).

Block

StrctLine

Geometry

LineString

Min zoom

14

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 4202 (Mine/Tunnel Entrance)
  • 4201 (Tall Tower)

TpgphArea #

Layer containing Topographic Notation Area (TpgphArea).

Block

TpgphArea

Geometry

Polygon

Min zoom

8

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 7401 (Wetland)
  • 7403 (Gravel Area (When Boundary is Clear))
  • 7402 (Perennial Snow)

vt_flag17

Type: number

Values:

  • 1 (Display Both Zoom Levels 16,17)
  • 0 (Display Zoom Level 16)

TpgphLine #

Layer containing Topographic Notation Line (TpgphLine).

Block

TpgphLine

Geometry

LineString

Min zoom

14

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 7532 (Depression Direction Line Small Depression (Arrow))
  • 7531 (Depression Direction Line Large Depression (Protrusion))
  • 7509 (Earth Cliff (Unknown))
  • 7501 (Earth Cliff Concrete/Solid Stone Masonry Slope)
  • 7502 (Earth Cliff Concrete/Not Solid Stone Masonry Slope)
  • 7511 (Rock Cliff)
  • 7521 (Gully (Upper Part))
  • 7551 (Tidal Flat Boundary)
  • 7512 (Rock)
  • 7541 (Rock Awash)
  • 7572 (Water Depression Direction Line)
  • 7571 (Steep Lake Bottom Slope)
  • 7561 (Dry River Waterline)

WA #

Layer containing Water Area (WA).

Block

WA

Geometry

Polygon

Min zoom

4

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 5242 (Lake/Pond Boundary Line (Lake/Pond Side))
  • 5101 (Coastline Normal Part)
  • 5231 (Lake/Pond Normal Part)
  • 5190
  • 5201 (River Normal Part)
  • 5203 (River Contacting Levee etc.)
  • 5202 (River Contacting Rock etc.)
  • 5103 (Coastline Contacting Levee etc.)
  • 5102 (Coastline Contacting Rock etc.)
  • 5100 (Sea)
  • 5200 (River/Lake/Pond)

WL #

Layer containing Waterline (WL).

Block

WL

Geometry

LineString

Min zoom

16

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 5201 (River Normal Part)
  • 5203 (River Contacting Levee etc.)
  • 5231 (Lake/Marsh Normal Part)
  • 5233 (Lake/Marsh Contacting Levee etc.)

WRltLine #

Layer containing Water Notation Line (WRltLine).

Block

WRltLine

Geometry

LineString, Polygon, Point

Min zoom

4

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 5902 (Water/Maritime Traffic Route Trajectory)
  • 5901 (Water/Maritime Traffic Vessel)
  • 5911 (Flow Direction)

vt_angle

Type: number

Min value:

  • 0

Max value:

  • 360

WStrA #

Layer containing Water Structure Area (WStrA).

Block

WStrA

Geometry

Polygon

Min zoom

8

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 5411 (Pier (Iron, Concrete))
  • 5401 (Dam)

WStrL #

Layer containing Water Structure Line (WStrL).

Block

WStrL

Geometry

LineString

Min zoom

14

Max zoom

17

Fields

vt_code

Type: number

Values:

  • 5515 (Sluice Gate)
  • 5521 (Waterfall)
  • 5501 (Dam)
  • 5532 (Permeable Breakwater)
  • 5511 (Pier (Iron, Concrete))
  • 5514 (Weir)

vt_flag17

Type: number

Values:

  • 1 (Display Both Zoom Levels 16,17)
  • 0 (Display Zoom Level 16)
  • 2 (Display Zoom Level 17)

License

With the use of this API, you must visibly credit these attributions:

© GSI © MapTiler © OpenStreetMap contributors
