MapTiler Cadastre schema

The vector tile schema describes how the vector data is organized into different thematic layers and which attribute and values each layer contains. This is useful for writing a map style.

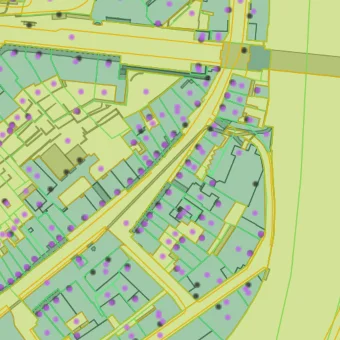

MapTiler Cadastre is a tileset containing real estate cadastre information. Design of tileset containing the most useful information (availability depends on country) like parcel, buildings and their numbers, land-use, or addresses. Tileset provides the most precise geometry (low scale mapping) with additional information for interconnecting with authorities.

Nevertheless, this Tileset cannot be used for any legal action and in any legal case please contact the competent authority.

Explore the tileset in the interactive map viewer, check the date of the last update, use it as vector tiles, etc.

Inspect MapTiler Cadastre schema

Maps with this tileset

Definition of layers

The MapTiler Cadastre tileset contains the following layers:

address #

Name or number that describes the building access.

Fields

id

Building ID defined by the responsible party.

name

Housenumber.

address

Address of the building if it’s provided.

source

Source of data from the responsible party.

building #

Polygon of the building that is on the parcel used.

Fields

id

Building ID defined by the responsible party.

area

The indicative area of the polygon is in square meters. If it is not specified in the source data then it is computed in the original projection.

type

Usage of the parcel that is specified by the provider.

type_code

Code of the type defined by the responsible party.

source

Source of data from the responsible party.

created

Date of data creation.

updated

Date of data update.

landuse #

Landuse is used to describe use of land by humans.

Fields

id

ID defined by the responsible party.

type

Usage of the area that is specified by the provider. In English.

Possible values:

  • building
  • street
  • pavement
  • trafic_island
  • train
  • aerodrome
  • water
  • other_building
  • field
  • vines
  • intensive_culture
  • garden
  • large_fen
  • other_land
  • water_standing
  • water_flowing
  • water_reed_belt
  • forest
  • pasture_dense
  • pasture_open
  • other_pasture
  • rock
  • glacier
  • sand
  • landfill
  • other_barren_land
  • wall
  • underground_building
  • other_part_of_the_building
  • culverted_public_water_course
  • important_staircase
  • tunnel_underpass_gallery
  • bridge_passerelle
  • platform
  • well
  • reservoir
  • pier
  • shelter
  • silo
  • chimney
  • monument
  • antenna_pole
  • observation_tower
  • embankment
  • sill
  • avalanche_barrier
  • massive_base
  • ruin_archaeological_object
  • landing_bridge
  • single_rock
  • narrow_stocked_area
  • rivulet
  • narrow_path
  • high_voltage_line
  • aerialway
  • axis
  • shrine_crucifix
  • spring
  • other
  • pressure_line
  • railway
  • freight_cableway
  • ferry
  • cableway
  • cave_entrance
  • ski_lift
  • noise_barrier
  • loading_ramp
  • driving_silo
  • septic
  • manure
  • NULL

type_code

Code of the type defined by the responsible party.

Possible values:

  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 34
  • 39
  • 43
  • 44
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 46
  • 47
  • 48
  • 31
  • 32
  • 33
  • 35
  • 37
  • 40
  • 41
  • 42
  • 60
  • 61
  • 62

source

Source of data from the responsible party.

created

Date of data creation.

updated

Date of data update.

parcel #

The main part of the cadastral map defines areas and owners.

Fields

id

Parcel ID defined by the responsible party.

number

A parcel name is often just a number defined by the responsible party.

area

Indicative area of the polygon in square meters. If it is not specified in source data than it is computed in the original projection.

landuse

Usage of the parcel that is specified by the provider (e.g. in Austria, Czechia).

source

Source of data from the responsible party.

created

Date of data creation.

updated

Date of data update.

zone

Referal of the area in the zone layer.

parcel_name #

Name or number that describes the parcel.

Fields

number

A parcel name is often just a number defined by the responsible party.

rank

The difference in parcel name number meaning.

Possible values:

  • 1 - Parcel number
  • 2 - Permanent right
  • 3 - Building (object) parcel number
  • 4 - Name of the building

survey_point #

Fixed points and border points differentiate by category and marker type. Some of the survey points include coordinates in the local reference system (e.g. for Switzerland it is LV95 EPSG:2056) and height in meters.

Fields

number

A point number (name) is often just a number defined by the responsible party.

category

Category of fix points. LFP1 - Points of the National Survey LV95 LFP2 - Points of the cantonal triangulation LFP3 - Points of the parcel survey HFP1 - Points of the national levelling LN02 HFP2 - Points of the cantonal levelling HFP3 - Points of communal levelling border - Border points indicate the course of borders and boundaries.

Possible values:

  • LFP1
  • LFP2
  • LFP3
  • HFP1
  • HFP2
  • HFP3
  • border

mark

Type of physical object.

height

Height of the point in meters and defined by the responsible party.

coord1

Coordinate the point in the local reference system and defined by the responsible party.

coord2

Coordinate the point in the local reference system and defined by the responsible party.

updated

Date of data update.

created

Date of data creation.

source

Source of data from the responsible party.

zone #

Often cadastral territories are defined by authority or admin level in the Country.

Fields

code

Is defined by the responsible party.

level

The hierarchy level number of cadaster units in the country.

level_name

The local name of the level is defined and used by the responsible party.

source

Source of data from the responsible party.

area

The indicative area of the polygon is in square meters. If it is not specified in the source data then it is computed in the original projection.

License

With the use of this API, you must visibly credit these attributions:

© MapTiler
