How To Migrate/Switch From Mapbox Android To MapTiler SDK Kotlin

This tutorial provides guidance on transitioning from Mapbox Android SDK to the MapTiler Kotlin SDK. If you currently use Mapbox’s Android SDK, switching to MapTiler Kotlin is straightforward.

In most cases, you only need to replace the Mapbox dependency with the MapTiler SDK Kotlin, set the API key once in MTConfig, and swap Mapbox-specific classes/usages for the typed MapTiler SDK Kotlin APIs (MTMapView, MTMapOptions, MTMapReferenceStyle, MTMapViewController, etc.). You’ll also replace style URIs/URLs with strong typed styles and language/terrain options.

Next, see the main changes to migrate your app from Mapbox to MapTiler Kotlin.

Installation

Replace the Gradle dependency to use the MapTiler Kotlin SDK.

Mapbox Android SDK (Gradle)

dependencies {
  implementation("com.mapbox.maps:android-ndk27:11.16.6")
}

MapTiler SDK Kotlin (Gradle)

dependencies {
  implementation("com.maptiler:maptiler-sdk-kotlin:1.2.0")
}

Find the latest version of MapTiler SDK Kotlin at maptiler/maptiler-sdk-kotlin

Replace Mapbox Classes With MapTiler SDK Types

Search your app and replace Mapbox classes and helpers with MapTiler Kotlin equivalents. Some examples below.

Mapbox Android SDK

MapboxMap(
  Modifier.fillMaxSize(),
  mapViewportState = rememberMapViewportState {
    setCameraOptions {
      zoom(10.68)
      center(Point.fromLngLat(8.5419, 47.3799))
      pitch(0.0)
      bearing(0.0)
    }
  },
)

MapTiler SDK Kotlin - Compose

MTConfig.apiKey = "YOUR_API_KEY"
val controller = MTMapViewController(context)
MTMapView(
  referenceStyle = MTMapReferenceStyle.STREETS,
  options = MTMapOptions(center = LngLat(8.5419, 47.3799), zoom = 10.68),
  controller = controller
)

MapTiler SDK Kotlin - XML

MTConfig.apiKey = "YOUR_API_KEY"
val controller = MTMapViewController(context)
findViewById<MTMapViewClassic>(R.id.classicMapView).initialize(
  referenceStyle = MTMapReferenceStyle.STREETS,
  options = MTMapOptions(center = LngLat(8.5419, 47.3799), zoom = 10.68),
  controller = controller
)

Migrate The Basemap Styles

Use MapTiler’s predefined styles.

Mapbox Android SDK

MapboxMap(
  style = { MapboxStandardStyle() }
)

MapTiler SDK Kotlin

// Always latest style; no URL or key in the string
val reference = MTMapReferenceStyle.STREETS
// Optional variant:
styleVariant = MTMapStyleVariant.DARK

Camera Animation

Mapbox Android SDK

// define camera position
val cameraPosition = CameraOptions.Builder()
  .zoom(zoom)
    .center(it.point)
    .build()

// set camera position
mapView.mapboxMap.setCamera(cameraPosition)

// fly to
mapboxMap.flyTo(
  target,
   mapAnimationOptions {
      duration(12_000)
    }
)

MapTiler SDK Kotlin

val controller = MTMapViewController(context)
val cameraOptions = MTCameraOptions(center, zoom, bearing, pitch)
controller.jumpTo(cameraOptions)
controller.easeTo(cameraOptions)
controller.flyTo(cameraOptions)

Add Sources and Layers

Mapbox Android SDK

LineLayer(
  sourceState = rememberGeoJsonSourceState {
    data = GeoJSONData("https://example.com/example.geojson")
  }
) {
  lineColor = ColorValue(Color.Red)
  lineWidth = DoubleValue(1.5)
 }

MapTiler SDK Kotlin

val source = MTGeoJSONSource(identifier = "mySource", url = URL("https://example.com/example.geojson"))
val lineLayer = MTLineLayer(identifier = "myLayer", sourceIdentifier = source.identifier)
lineLayer.sourceLayer = "contour"
lineLayer.color = Color.RED
lineLayer.width = 1.5
controller.style?.addSource(source)
controller.style?.addLayer(lineLayer)

Custom Annotations

While Mapbox Android uses annotations API to add map overlays, MapTiler SDK Kotlin uses MTCustomAnnotationView and MTCustomAnnotationViewClassic for Compose and XML respectively.

// Compose: Place MTCustomAnnotationView as a sibling composable above MTMapView
// inside a stacking container (e.g., Box)
MTCustomAnnotationView(
  controller = controller,
  coordinates = LngLat(14.42076, 50.08804),
  modifier = Modifier
) {
  // Your composable (e.g., Card/Text/Icon)
}
// XML: MTCustomAnnotationViewClassic is a container: add your own child Android Views
// into it to render custom UI.
val annotation = MTCustomAnnotationViewClassic(
  context = this,
  widthPx = 120, heightPx = 48,
  initialCoordinates = LngLat(14.42076, 50.08804)
)
// Inflate your custom layout into the container
LayoutInflater.from(this).inflate(R.layout.my_custom_layout, annotation, true)
annotation.addTo(mapView, controller)

For more info take a look at our custom annotations example.

Markers, Globe and Space

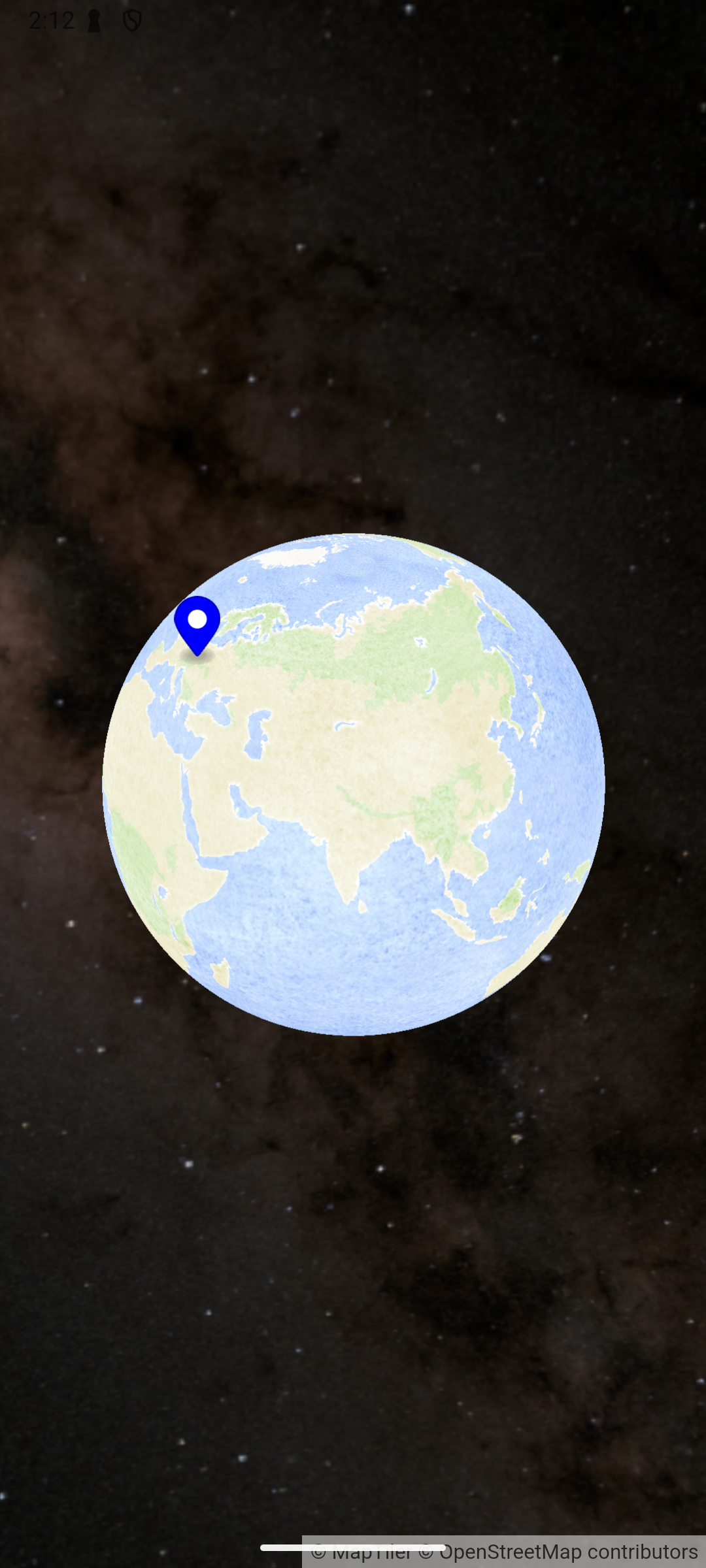

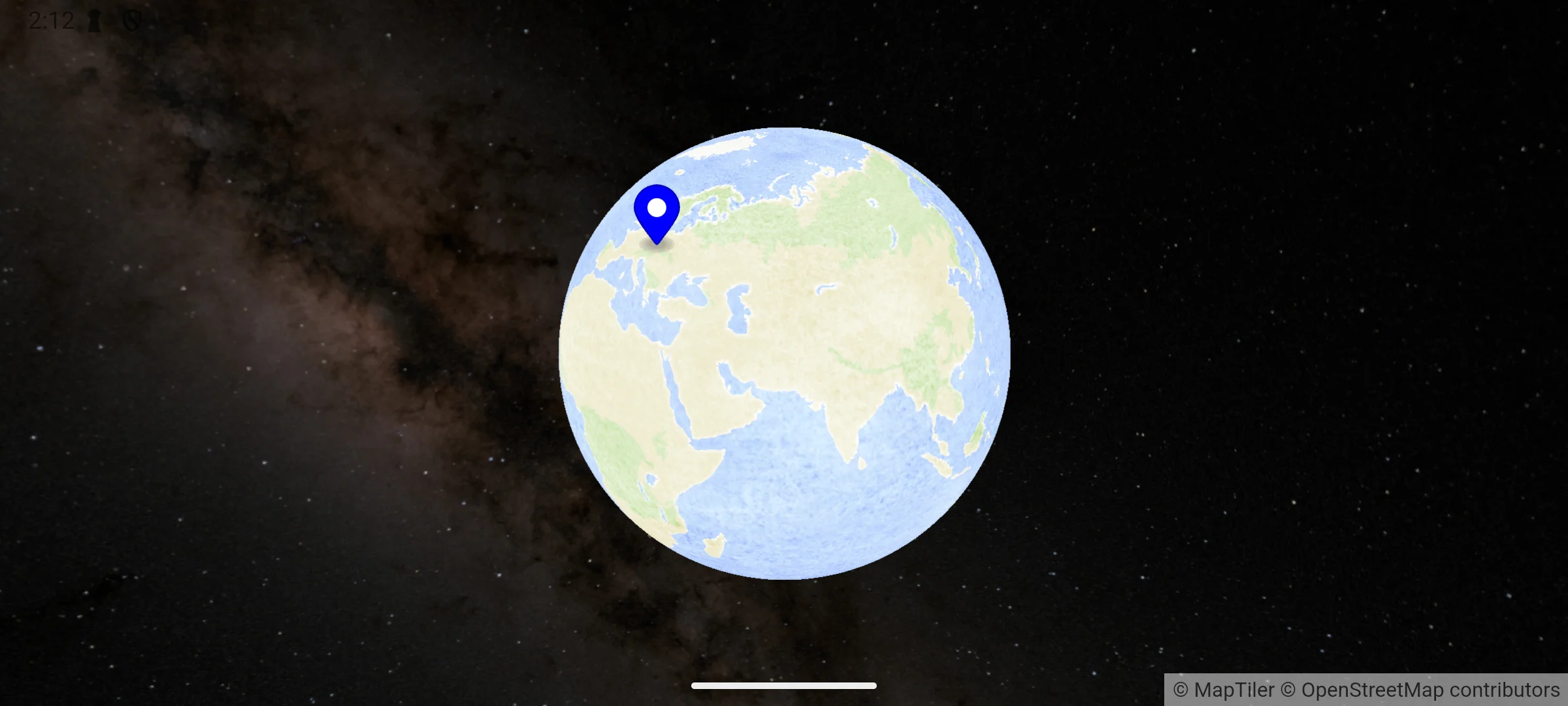

MapTiler SDK Kotlin also gives you options to change map projection to Globe, add space background behind it and annotate your data with markers.

Compose

// Set once in your app (e.g., Application.onCreate)
MTConfig.apiKey = "YOUR_API_KEY"
val controller = MTMapViewController(context).apply {
  // Add marker only after the map is ready
  delegate = object : MTMapViewDelegate {
    override fun onMapViewInitialized() {
      // Map is initialized
    }
    override fun onEventTriggered(event: MTEvent, data: MTData?) {
      if (event == MTEvent.ON_READY) {
        val location = LngLat(14.42076, 50.08804)
        style?.addMarker(MTMarker(location))
      }
    }
  }
}
// Enable globe projection and add space background behind it
val options = MTMapOptions(
  projection = MTProjectionType.GLOBE,
  space = MTSpaceOption.Config(
    MTSpace(preset = MTSpacePreset.MILKYWAY_COLORED)
  )
)
MTMapView(
  referenceStyle = MTMapReferenceStyle.AQUARELLE,
  options = options,
  controller = controller,
  modifier = Modifier.fillMaxSize()
)

XML

// XML layout contains: <com.maptiler.maptilersdk.map.MTMapViewClassic android:id="@+id/classicMapView" ... />
MTConfig.apiKey = "YOUR_API_KEY"
val controller = MTMapViewController(this).apply {
  delegate = object : MTMapViewDelegate {
    override fun onMapViewInitialized() {
      // Map is initialized
    }
    override fun onEventTriggered(event: MTEvent, data: MTData?) {
      if (event == MTEvent.ON_READY) {
        style?.addMarker(MTMarker(LngLat(14.42076, 50.08804)))
      }
    }
  }
}
val options = MTMapOptions(
  projection = MTProjectionType.GLOBE,
  space = MTSpaceOption.Config(MTSpace(preset = MTSpacePreset.MILKYWAY_COLORED))
)
val classic = findViewById<MTMapViewClassic>(R.id.classicMapView)
classic.initialize(
  referenceStyle = MTMapReferenceStyle.AQUARELLE,
  options = options,
  controller = controller
)
Migrate/Switch From Mapbox Android To MapTiler SDK Kotlin
