React JS with MapTiler maps

In this step-by-step tutorial, you’ll learn how to create a React JS component that leverages the power of MapTiler SDK JS mapping library to render maps. Together we will build a simple full-screen map application, serving as a practical example of how to seamlessly integrate MapTiler maps into your own React app.

By the end of this tutorial, you will be able to create a full-screen map with a marker placed at a specified location. With your newfound knowledge, you will be able to create visually stunning maps within your React projects. Take a sneak peek at the final output of this tutorial below:

Display MapTiler SDK JS map using React JS

Getting started

Minimal requirements for completing this tutorial.

  • Basic React JS knowledge. You don’t need a lot of experience using React for this tutorial, but you should be familiar with basic concepts and workflow.

  • MapTiler API key. Your MapTiler account access key is on your MapTiler Cloud account page or Get API key for FREE.

  • MapTiler SDK JS. JavaScript library for building web maps. In this tutorial, you will learn how to install it.

  • Node.js and npm. Necessary to run your React app locally. Node.js

Create an app

In this step, we are going to learn how to create a React app.

To create a new react project run in your command-line:

npm create vite my-react-map -- --template react

create vite will create a simple one-page application in React. For more information follow Scaffolding Your First Vite Project.

Navigate to the newly created project folder my-react-map

cd my-react-map

Inside the newly created project, run npm install to install the dependencies.

To start your local environment, run npm run dev. You will find your app running on the address http://localhost:5173/.

Now you should see the app in your browser.

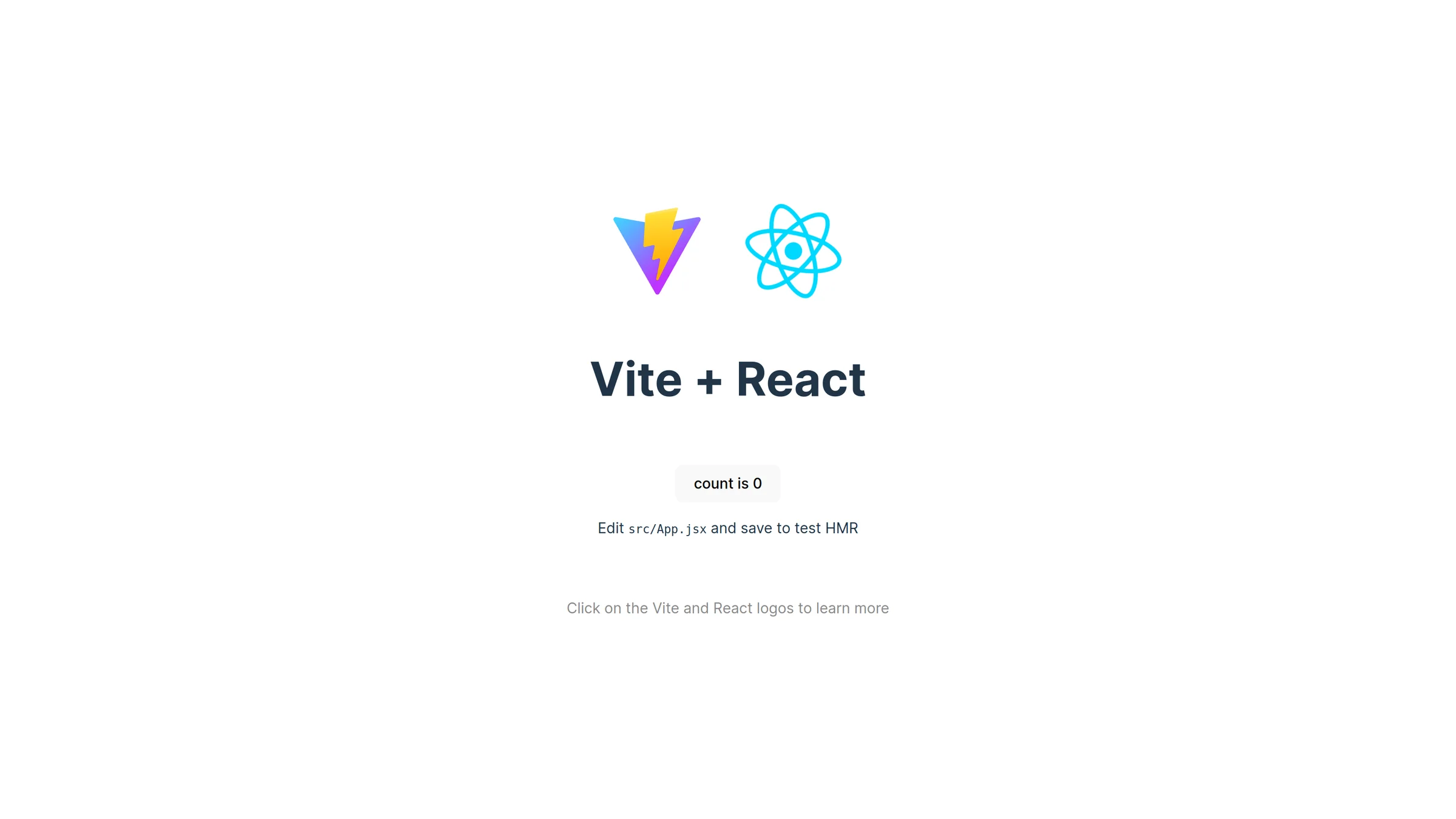

Vite + React app

Installation and setting up

To install MapTiler SDK JS library, navigate to your project folder and run the command:

npm i @maptiler/sdk

Navigate to the src folder and delete all the contents of the index.css file.

Navigate to the src folder and replace all the contents of the App.css file with the following lines:

body {
  margin: 0;
  padding: 0;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', 'Roboto', 'Oxygen',
  'Ubuntu', 'Cantarell', 'Fira Sans', 'Droid Sans', 'Helvetica Neue',
  sans-serif;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
}

code {
  font-family: source-code-pro, Menlo, Monaco, Consolas, 'Courier New',
  monospace;
}

Replace all the contents of the App.jsx file with the following lines:

import './App.css';

function App() {
  return (
    <div className="App">
    This is my map App
    </div>
  );
}

export default App;

Now you should see “This is my map App“ in your browser.

Create a navbar component

In this step, we will create a simple heading navbar component.

Create a new folder called components inside the src folder.

Create a new file called navbar.jsx inside the components folder and write these lines:

import React from 'react';
import './navbar.css';

export default function Navbar(){
  return (
    <div className="heading">
    <h1>This is my map App</h1>
    </div>
  );
}

Create a new file called navbar.css inside the components folder and write these lines:

.heading {
  margin: 0;
  padding: 0px;
  background-color: black;
  color: white;
  text-align: center;
}

.heading > h1 {
  padding: 20px;
  margin: 0;
}

Finally, to display the Navbar we need to import the Navbar component and add it to our main component App.jsx.

Import the navbar component into App.jsx write the following line at the beginning of the file

import Navbar from './components/navbar.jsx';

Replace the text This is my map App with <Navbar />. Your App.jsx file should look like this:

Now you should see the black navbar at the top of your browser.

App navigation bar

Create a map component

In this step, we will create a simple map component.

Create a new file called map.jsx inside the components folder.

First, we’ll import MapTiler SDK JS and the required React functions. Add these lines on top of map.jsx file.

Now we will create a function as our map component.

And set up your map’s default state.

The state stores the map object, its container. Longitude, latitude, and zoom for the map will all change as your user interacts with the map.

Here you will need to replace YOUR_MAPTILER_API_KEY_HERE with your actual MapTiler API key.

In the next step, we will initialize the map in the Map() function.

This code will be right after the component is inserted into the DOM tree. We initialize the map using React effect hook and we also set up some basic options of the map:

  1. The container option sets the DOM element in which will the map be rendered. We will assign the ref our component expects to an HTML element, which will act as a container, later in this tutorial.

  2. The style option defines what style is the map going to use.

  3. The center and zoom options set the starting position of the map.

Now, we will add the return statement to your Map() function. Add the following code to your component above the closing curly brace of Map():

The ref={mapContainer} specifies that App should be drawn to the HTML page in the <div> element.

We are finished with our basic map component, your map.jsx file should look like this:

Now we will need simple styling to render the map correctly. Create a file named map.css in components folder for the map component style and write the following code to your map.css file:

.map-wrap {
  position: relative;
  width: 100%;
  height: calc(100vh - 77px); /* calculate height of the screen minus the heading */
}

.map {
  position: absolute;
  width: 100%;
  height: 100%;
}

We use position: absolute on the map itself and position: relative on the wrap around the map for more possibilities in future styling.

Render a map

Now we will import the map component into your app, add the following line to the top of the App.jsx.

import Map from './components/map.jsx';

And then, add the imported <Map/> component in your App() function. Your App.jsx file should then look like this:

With everything done up until now, you should be able see your beautiful map in your browser.

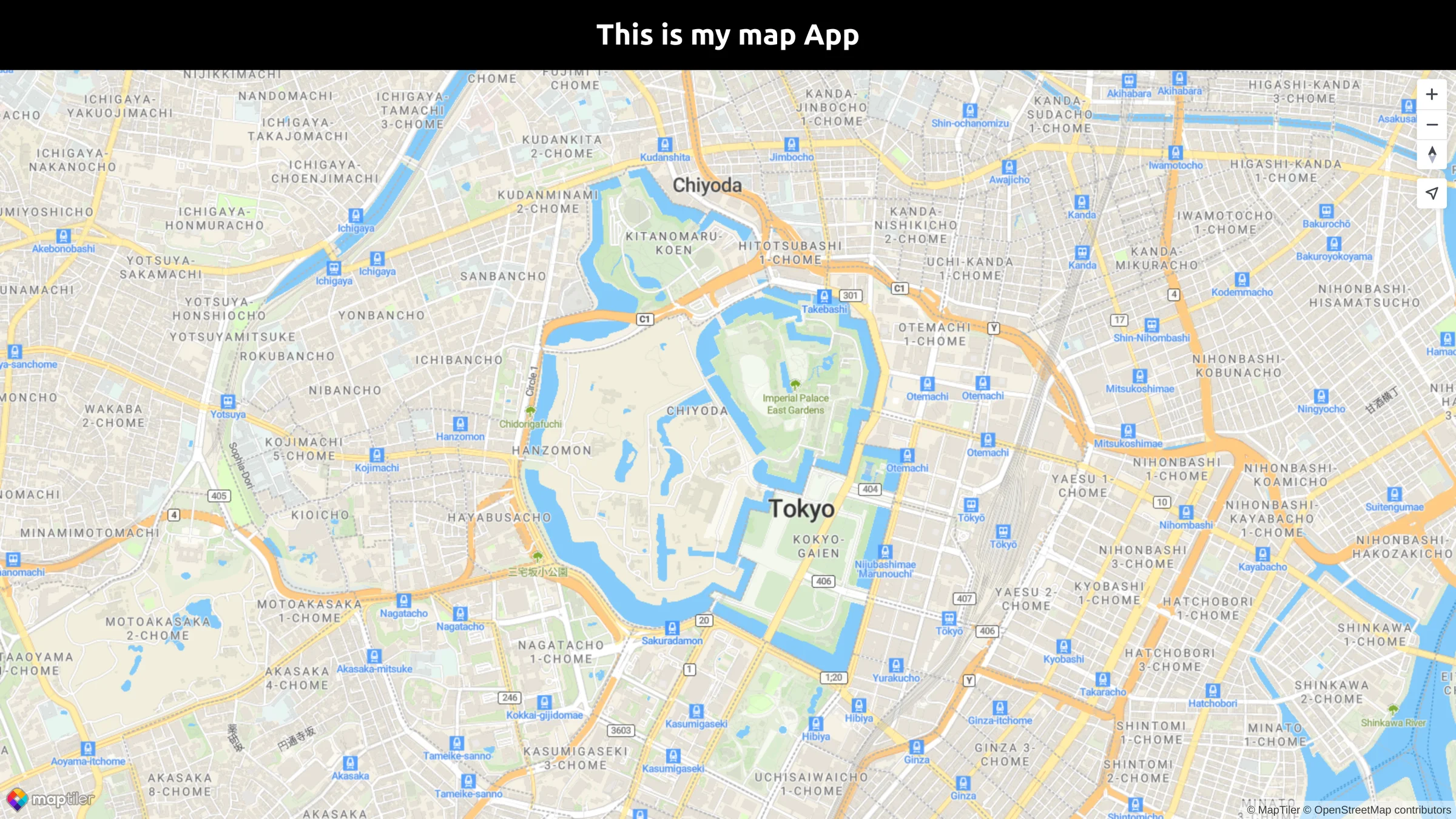

Full-screen map

Map marker

Another basic thing to add to your map could be a marker of some location.

In the next line where we declare the navigation control we add these lines:

We create a new marker using the .marker function. We added the color option to make it red, then set Lng/Lat of the marker using .setLngLat() function , and finally added it to the current map using .addTo() function.

We are finished with our basic map objects, your map.js file should look like this:

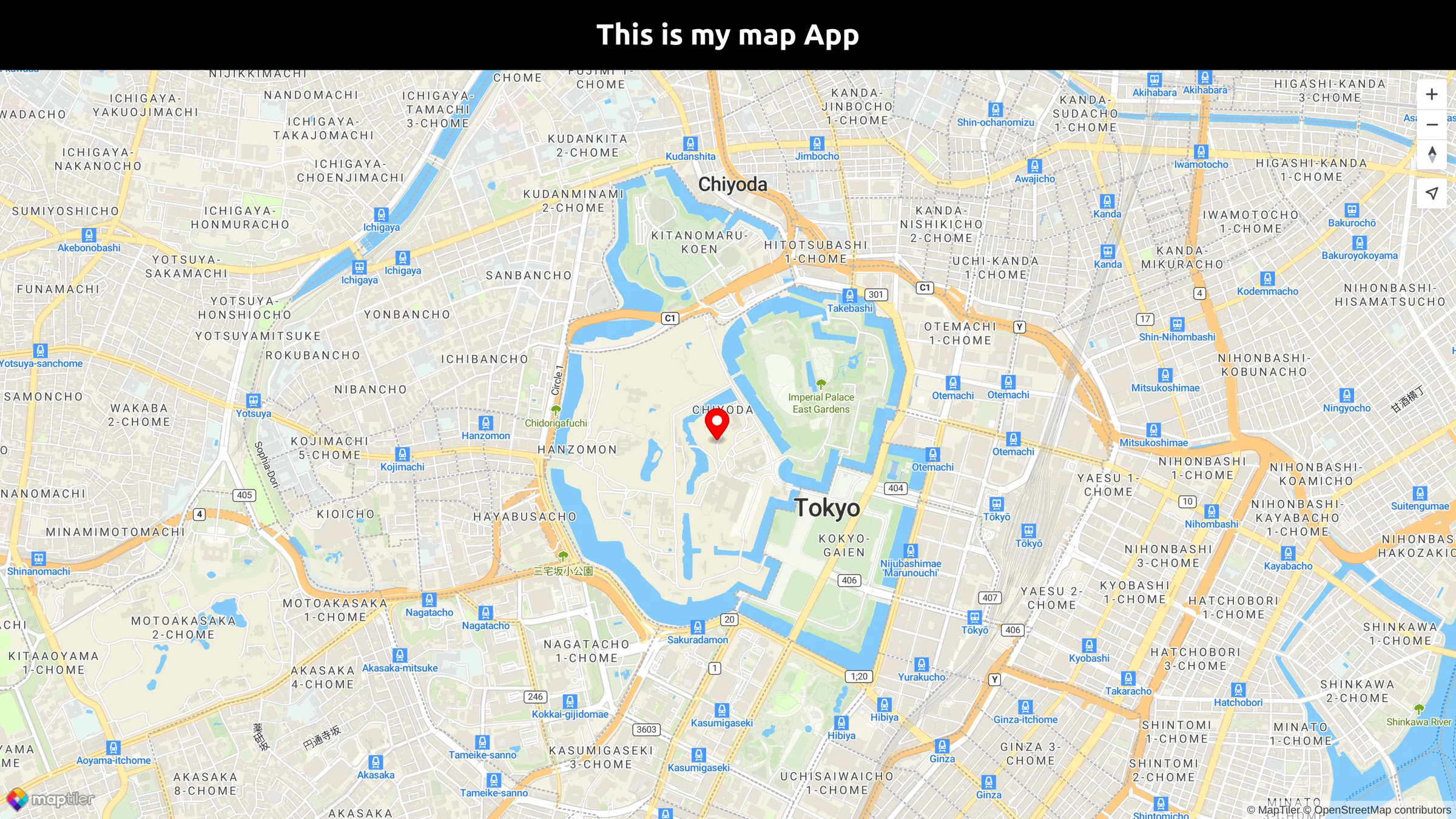

Display MapTiler SDK JS map using React JS

Conclusion

Congratulations! You have finished your simple full-screen map app using React JS, showing Tokyo with a marker on Tokyo Imperial Palace. You can explore more about MapTiler SDK JS for your map in the MapTiler SDK JS API reference.

With MapTiler SDK JS, React developers can create stunning visualizations and data-driven maps that are responsive and efficient. It also provides support for advanced features like WebGL rendering, 3D maps, and animations.

MapTiler SDK JS API

NPM - MapTiler SDK JS

Vite - Getting Started

MapTiler Cloud - Customize

Learn more

Check the more than 100 MapTiler SDK JS examples that we have prepared so that you can see the limitless possibilities of MapTiler SDK JS and unlock the full potential of your React applications. It offers easy terrain, built-in styles, language switching, geocoding, TypeScript power, optional IP geolocation, etc.

Get started with React JS and MapLibre GL JS

If you’re looking to develop React applications with MapLibre GL JS, you have two options. First, you can make use of the react-map-gl library, which provides an easy and convenient way to integrate MapLibre GL JS into your React projects. Alternatively, you can choose to develop your custom component from scratch. To get started, be sure to check out our tutorial titled Get Started with React JS and MapLibre GL JS. This tutorial will provide you with the necessary guidance and examples to kickstart your React and MapLibre GL JS development journey.

Get Started With MapLibre GL JS for React Native

You can also develop your applications using React Native. Check out the tutorial Get started with React Native and MapLibre GL JS
